Joint Inference with Numpyro

In this notebook, we demonstrate how to use Numpyro to perform fully Bayesian inference over the hyperparameters of a Gaussian process model. We will look at a scenario where we have a structured mean function in the form of a linear model, and a GP capturing the residuals. We will infer the parameters of both the linear model and the GP jointly.

from jax import config
import jax.numpy as jnp
import jax.random as jr
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpyro
import numpyro.distributions as dist
from numpyro.infer import (
    MCMC,
    NUTS,
    Predictive,
)

from examples.utils import use_mpl_style
import gpjax as gpx
from gpjax.numpyro_extras import register_parameters

config.update("jax_enable_x64", True)

use_mpl_style()
cols = mpl.rcParams["axes.prop_cycle"].by_key()["color"]

key = jr.key(123)
keys = jr.split(key, 4)

Data Generation

We generate a synthetic dataset that consists of a linear trend together with a locally periodic residual signal whose amplitude varies over time, an additional high-frequency component, and a local bump. This data generating process is purposefully designed to illustrate the benefit of incorporating a Gaussian process into a larger Bayesian model; however, such structures are common.

N = 200

x = jnp.sort(jr.uniform(keys[0], shape=(N, 1), minval=0.0, maxval=10.0), axis=0)

# True parameters for the linear trend
true_slope = 0.45
true_intercept = 1.5

# Structured residual signal captured by the GP
slow_period = 6.0
fast_period = 0.8
amplitude_envelope = 1.0 + 0.5 * jnp.sin(2 * jnp.pi * x / slow_period)
modulated_periodic = amplitude_envelope * jnp.sin(2 * jnp.pi * x / fast_period)
high_frequency_component = 0.3 * jnp.cos(2 * jnp.pi * x / 0.35)
localised_bump = 1.2 * jnp.exp(-0.5 * ((x - 7.0) / 0.45) ** 2)

linear_trend = true_slope * x + true_intercept
residual_signal = modulated_periodic + high_frequency_component + localised_bump
signal = linear_trend + residual_signal

# Observations with homoscedastic noise
observation_noise = 0.7
y = signal + observation_noise * jr.normal(keys[1], shape=x.shape)

D = gpx.Dataset(X=x, y=y)

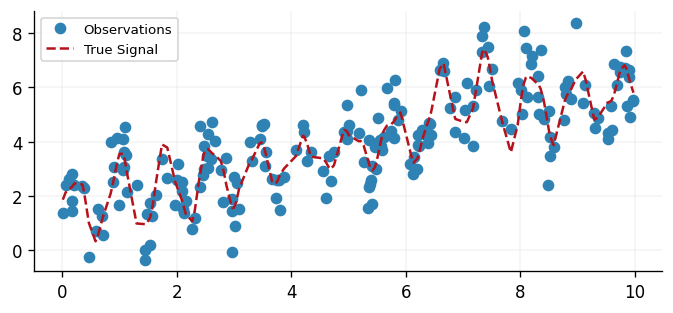

fig, ax = plt.subplots()
ax.plot(x, y, "o", label="Observations", color=cols[0])
ax.plot(x, signal, "--", label="True Signal", color=cols[1])
ax.legend()

<matplotlib.legend.Legend at 0x7fc5a4921fd0>

png

Model Definition

We define a GP model with a zero mean function, as we will handle the linear trend explicitly in the Numpyro model. Naturally, one could parameterise the GP with a linear mean function; however, this design is purely pedagogical. For the kernel, we specify a product of a periodic kernel and an RBF kernel. This choice reflects our prior knowledge that the signal is locally periodic. For a more in-depth look at how complex kernels can be designed, see our Introduction to Kernels notebook.

We see in the below that priors are specified on the parameters' constrained space. For example, the lengthscale parameter must be strictly positive and, therefore, a unit-Gaussian would be a poor choice of prior. Instead, we opt for the log-Gaussian as the prior distribution as its support matches that of our lengthscale parameter. Attaching a prior to a parameter is straightforward using the prior argument in the parameter's class and specifying any numpyro distribution.

# Define priors
lengthscale_prior = dist.LogNormal(0.0, 1.0)
variance_prior = dist.LogNormal(0.0, 1.0)
period_prior = dist.LogNormal(0.0, 0.5)
noise_prior = dist.LogNormal(0.0, 1.0)

# We can explicitly attach priors to the parameters
lengthscale = gpx.parameters.PositiveReal(1.0, prior=lengthscale_prior)
variance = gpx.parameters.PositiveReal(1.0, prior=variance_prior)
period = gpx.parameters.PositiveReal(1.0, prior=period_prior)
noise = gpx.parameters.NonNegativeReal(1.0, prior=noise_prior)

Now that all of our parameters are defined, we'll proceed to construct the Gaussian process in the ordinary fashion. For a deeper look at how this is done, our Regression notebook is a good starting point.

stationary_component = gpx.kernels.RBF(
    lengthscale=lengthscale,
    variance=variance,
)
periodic_component = gpx.kernels.Periodic(
    lengthscale=lengthscale,
    period=period,
)
kernel = stationary_component * periodic_component

meanf = gpx.mean_functions.Constant()
prior = gpx.gps.Prior(mean_function=meanf, kernel=kernel)

likelihood = gpx.likelihoods.Gaussian(
    num_datapoints=N,
    obs_stddev=noise,
)
posterior = prior * likelihood

Joint Inference Loop

With a GPJax Posterior object now defined, the only outstanding task is to integrate it into a full Numpyro model. This notebook is not designed to be a full introduction to Numpyro (for that, see the excellent Numpyro Documentation); however, in the below model we first sample the slope and intercept parameters of the linear component. We then compute the residuals between the observed data and the linear component, before then computing the GP marginal log-likelihood of the residual.

The key step in the below is registering the parameters of the GPJax model with Numpyro via GPJax's register_parameters function. This function automatically samples parameters of the model and returns an updated state of the model with those sampled values used as parameters.

def model(X, Y, X_new=None):
    # 1. Sample linear model parameters
    slope = numpyro.sample("slope", dist.Normal(0.0, 2.0))
    intercept = numpyro.sample("intercept", dist.Normal(0.0, 2.0))
    linear_component = slope * X + intercept

    residuals = Y - linear_component

    p_posterior = register_parameters(posterior)
    D_resid = gpx.Dataset(X=X, y=residuals)
    mll = gpx.objectives.conjugate_mll(p_posterior, D_resid)

    numpyro.factor("gp_log_lik", mll)

    if X_new is not None:
        latent_dist = p_posterior.predict(X_new, train_data=D_resid)
        f_new = numpyro.sample("f_new", latent_dist)
        f_new = f_new.reshape((-1, 1))

        # Add observation noise to get noisy predictions
        obs_stddev = p_posterior.likelihood.obs_stddev[...]
        y_noise = numpyro.sample(
            "y_noise",
            dist.Normal(0.0, obs_stddev).expand(f_new.shape).to_event(f_new.ndim),
        )

        total_prediction = slope * X_new + intercept + f_new + y_noise
        numpyro.deterministic("y_pred", total_prediction)
        return total_prediction

Running MCMC

Using Numpyro's NUTS sampler, we can now draw samples from the posterior. To ensure our documentation can be quickly built, we limit the number of samples and the length of the burn-in phase below. However, in practice, one should draw more samples from multiple chains using the num_chains argument in the MCMC constructor.

nuts_kernel = NUTS(model)
# In practice, one should run more samples from multiple chains.
mcmc = MCMC(
    nuts_kernel,
    num_warmup=500,
    num_samples=500,
)
mcmc.run(keys[2], x, y)
mcmc.print_summary()

                                          mean       std    median      5.0%     95.0%     n_eff     r_hat
                           intercept      0.69      1.55      0.64     -1.74      3.31    266.12      1.00
               likelihood.obs_stddev      0.79      0.04      0.79      0.73      0.86    420.77      1.00
  prior.kernel.kernels.0.lengthscale      2.54      0.74      2.42      1.57      3.88    269.10      1.00
     prior.kernel.kernels.0.variance      7.62      4.97      6.06      1.97     14.70    263.58      1.00
       prior.kernel.kernels.1.period      0.80      0.02      0.80      0.77      0.82    441.77      1.00
                               slope      0.51      0.30      0.50      0.02      0.95    306.66      1.00

Number of divergences: 0

Analysis and Plotting

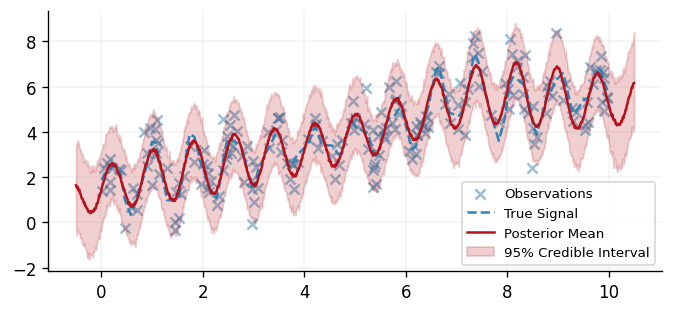

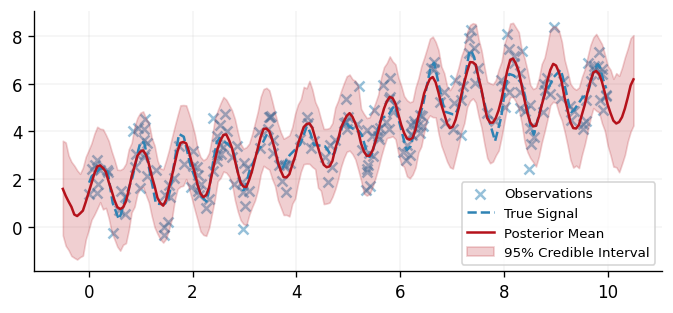

Having obtained samples from the posterior, we now evaluate the predictive posterior at the test sites. In our Poisson Regression, this process is done manually. However, by virtue of using Numpyro here, we may instead use Numpyro's Predictive object to handle this process for us. Once samples are drawn from the predictive posterior distribution, we may evaluate the mean and 95% credible interval and compare our model's predictions to the underlying data.

samples = mcmc.get_samples()
predictive = Predictive(
    model,
    posterior_samples=samples,
    return_sites=["y_pred"],
)

x_test = jnp.linspace(-0.5, 10.5, 1000).reshape(-1, 1)
predictions = predictive(keys[3], x, y, X_new=x_test)
y_pred = predictions["y_pred"]

mean_prediction = jnp.mean(y_pred, axis=0)
lower, upper = jnp.percentile(y_pred, jnp.array([2.5, 97.5]), axis=0)

fig, ax = plt.subplots()
ax.scatter(x, y, alpha=0.5, label="Observations", color=cols[0])
ax.plot(x, signal, "--", label="True Signal", color=cols[0])

ax.plot(x_test, mean_prediction, "-", label="Posterior Mean", color=cols[1])
ax.fill_between(
    x_test.flatten(),
    lower.flatten(),
    upper.flatten(),
    color=cols[1],
    alpha=0.2,
    label="95% Credible Interval",
)
ax.legend()

<matplotlib.legend.Legend at 0x7fc5687b2150>

png

Conclusions

This concludes our introduction to the integration of GPJax with Numpyro. The presentation given here is designed to best illustrate how the two libraries integrate. For a closer look at the more complex models that one may build by integrating Numpyro and GPJax, see our Spatial Semi-Linear Model notebook.
