Spatial Modelling with Composable Gaussian Processes

This notebook shows how to construct a semiparametric linear model by composing a linear model in NumPyro with a GPJax Gaussian Process (GP). We build two components: firstly, the linear component which ncodes a global affine trend with Bayesian linear regression. We then define a GP residual component which is responsible for capturing spatial structure that the linear term's residual.

The example highlights the interplay between GPJax and NumPyro: GPJax provides the GP prior and likelihood definitions, while NumPyro performs Hamiltonian Monte Carlo (HMC) inference across all parameters in a unified model and allows us to draw upon a broader set of modelling components.

Data Simulation

We simulate a 2D spatial dataset (\(N=200\)) on a domain \([0, 5] \times [0, 5]\). The generative process contains a linear trend: \(y_{\text{lin}} = 2x_1 - 1x_2 + 1.5\) with an additive spatial residual: \(y_{\text{res}} = \sin(x_1) \cos(x_2)\). To this, we add simulate an additive homoscedastic noise component \(\epsilon \sim \mathcal{N}(0, 0.1^2)\). The dominant linear trend masks a non-linear residual. Composing models lets us represent both behaviours without forcing a single mechanism to fit every feature of the data.

from functools import partial

import jax
import jax.numpy as jnp
import jax.random as jr
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpyro
import numpyro.distributions as dist
from numpyro.infer import (
    MCMC,
    NUTS,
    Predictive,
)

from examples.utils import use_mpl_style
import gpjax as gpx

jax.config.update("jax_enable_x64", True)

use_mpl_style()
cols = mpl.rcParams["axes.prop_cycle"].by_key()["color"]


N = 200
key = jr.key(123)
keys = jr.split(key, 8)

X = jr.uniform(keys[0], shape=(N, 2), minval=0.0, maxval=5.0)

# True Linear Trend
true_slope = jnp.array([2.0, -1.0])
true_intercept = 1.5
y_lin = X @ true_slope + true_intercept

# Non-linear Spatial Residual
y_res = jnp.sin(X[:, 0]) * jnp.cos(X[:, 1])

# Total Signal + Noise
latent_signal = y_lin + y_res
noise_stddev = 0.1
y = latent_signal + noise_stddev * jr.normal(keys[1], shape=latent_signal.shape)

Linear Component

We begin by defining a Bayesian linear regression model in NumPyro. This component will later be combined with a GP residual, but for now, we'll establish a baseline model through ordinary linear regression.

\[\begin{aligned} \mathbf{w} &\sim \mathcal{N}(\mathbf{0}, 5\mathbf{I}) \\ b &\sim \mathcal{N}(0, 5) \\ \sigma &\sim \text{LogNormal}(0, 1) \\ \mathbf{y} &\sim \mathcal{N}(\mathbf{X}\mathbf{w} + b, \sigma^2 \mathbf{I}) \end{aligned} \]

We use the No-U-Turn Sampler (NUTS) to draw samples from the posterior distributions of the slope \(\mathbf{w}\), intercept \(b\), and noise \(\sigma\).

def linear_model(X, Y=None):
    slope = numpyro.sample("slope", dist.Normal(0.0, 5.0).expand([2]))
    intercept = numpyro.sample("intercept", dist.Normal(0.0, 5.0))
    obs_noise = numpyro.sample("obs_noise", dist.LogNormal(0.0, 1.0))

    mu = X @ slope + intercept
    numpyro.deterministic("mu", mu)
    numpyro.sample("obs", dist.Normal(mu, obs_noise), obs=Y)


nuts_kernel_lin = NUTS(linear_model)
mcmc_lin = MCMC(nuts_kernel_lin, num_warmup=1500, num_samples=2000, num_chains=1)
mcmc_lin.run(keys[2], X, y)
mcmc_lin.print_summary()

                 mean       std    median      5.0%     95.0%     n_eff     r_hat
  intercept      1.36      0.10      1.36      1.20      1.52    915.80      1.00
  obs_noise      0.50      0.03      0.49      0.45      0.53   1272.61      1.00
   slope[0]      2.07      0.03      2.07      2.03      2.11   1235.28      1.00
   slope[1]     -1.03      0.03     -1.03     -1.07     -0.99   1129.96      1.00

Number of divergences: 0

Composing the Linear Component with a GP

We now augment the linear component with a GP tasked with modelling the residual.

\[ y(\mathbf{x}) = \underbrace{\mathbf{w}^T \mathbf{x} + b}_{\text{Linear Mean}} + \underbrace{f(\mathbf{x})}_{\text{GP Residual}} + \epsilon \]

GPJax and NumPyro Integration

We define the GP prior in GPJax using a second-order Matérn kernel and a constant mean function (since the linear trend is handled explicitly). Hyperparameters are sampled directly with numpyro.sample and passed to the GPJax constructors as raw JAX arrays. We then compute the exact marginal log-likelihood (MLL) of the residuals under the GP prior using gpx.objectives.conjugate_mll. This term is added to the potential function using numpyro.factor, guiding the sampler.

def joint_model(X, Y, X_new=None):
    slope = numpyro.sample("slope", dist.Normal(0.0, 5.0).expand([2]))
    intercept = numpyro.sample("intercept", dist.Normal(0.0, 5.0))

    lengthscale = numpyro.sample("lengthscale", dist.LogNormal(0.0, 1.0))
    variance = numpyro.sample("variance", dist.LogNormal(0.0, 1.0))
    obs_noise = numpyro.sample("obs_noise", dist.LogNormal(0.0, 1.0))

    kernel = gpx.kernels.Matern32(
        active_dims=[0, 1], lengthscale=lengthscale, variance=variance
    )
    meanf = gpx.mean_functions.Constant()
    gp_prior = gpx.gps.Prior(mean_function=meanf, kernel=kernel)
    likelihood = gpx.likelihoods.Gaussian(num_datapoints=N, obs_stddev=obs_noise)
    gp_posterior = gp_prior * likelihood

    trend = X @ slope + intercept

    if Y is not None:
        residuals = Y - trend
        residuals = residuals.reshape(-1, 1)
        D_resid = gpx.Dataset(X=X, y=residuals)
        mll = gpx.objectives.conjugate_mll(gp_posterior, D_resid)
        numpyro.factor("gp_log_lik", mll)

    if X_new is not None:
        if Y is not None:
            residuals = Y - trend
            residuals = residuals.reshape(-1, 1)
            D_resid = gpx.Dataset(X=X, y=residuals)

            latent_dist = gp_posterior.predict(X_new, train_data=D_resid)
            f_new = numpyro.sample("f_new", latent_dist)
            f_new = f_new.reshape((-1, 1))

            total_prediction = (X_new @ slope + intercept).reshape(-1, 1) + f_new
            numpyro.deterministic("y_pred", total_prediction)


joint_model_wrapper = joint_model
nuts_kernel_joint = NUTS(joint_model_wrapper)
# In practice, one should run more samples from multiple chains.
mcmc_joint = MCMC(nuts_kernel_joint, num_warmup=1500, num_samples=2000, num_chains=1)
mcmc_joint.run(keys[3], X, y)
mcmc_joint.print_summary()

                   mean       std    median      5.0%     95.0%     n_eff     r_hat
    intercept      1.67      1.14      1.72     -0.31      3.40    949.13      1.00
  lengthscale      4.29      1.16      4.16      2.51      6.07    720.87      1.00
    obs_noise      0.11      0.01      0.11      0.10      0.12   1331.51      1.00
     slope[0]      1.83      0.22      1.85      1.44      2.16   1091.15      1.00
     slope[1]     -0.97      0.21     -0.97     -1.32     -0.63   1045.05      1.00
     variance      1.80      1.48      1.39      0.24      3.46    751.68      1.00

Number of divergences: 0

Comparison and Visualization

We evaluate the linear model in isolation, and then the joint model where a GP has been included to model the residual.

samples_lin = mcmc_lin.get_samples()
predictive_lin = Predictive(linear_model, samples_lin, return_sites=["mu"])
preds_lin = predictive_lin(keys[4], X=X)["mu"]
mean_pred_lin = jnp.mean(preds_lin, axis=0)

samples_joint = mcmc_joint.get_samples()
predictive_joint = Predictive(
    joint_model_wrapper, samples_joint, return_sites=["y_pred"]
)
preds_joint = predictive_joint(keys[5], X=X, Y=y, X_new=X)["y_pred"]
mean_pred_joint = jnp.mean(preds_joint, axis=0)

rmse_lin = jnp.sqrt(jnp.mean((mean_pred_lin.flatten() - latent_signal.flatten()) ** 2))
rmse_joint = jnp.sqrt(
    jnp.mean((mean_pred_joint.flatten() - latent_signal.flatten()) ** 2)
)

print("\nRMSE Comparison (vs True Signal):")
print(f"Linear Model: {rmse_lin:.4f}")
print(f"Joint Model:  {rmse_joint:.4f}")

RMSE Comparison (vs True Signal):


Linear Model: 0.4761
Joint Model:  0.0451

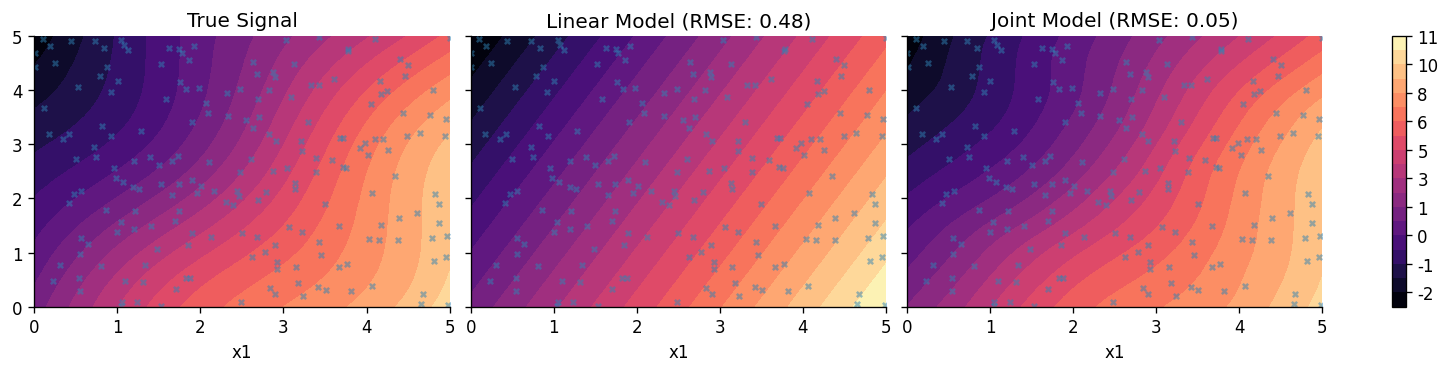

Let's now plot the predicted profiles from both models.

n_grid = 30
x1 = jnp.linspace(0, 5, n_grid)
x2 = jnp.linspace(0, 5, n_grid)
X1, X2 = jnp.meshgrid(x1, x2)
X_grid = jnp.column_stack([X1.ravel(), X2.ravel()])

y_grid_true = (X_grid @ true_slope + true_intercept) + (
    jnp.sin(X_grid[:, 0]) * jnp.cos(X_grid[:, 1])
)

preds_lin_grid = predictive_lin(keys[6], X=X_grid)["mu"]
mean_pred_lin_grid = jnp.mean(preds_lin_grid, axis=0)

preds_joint_grid = predictive_joint(keys[7], X=X, Y=y, X_new=X_grid)["y_pred"]
mean_pred_joint_grid = jnp.mean(preds_joint_grid, axis=0)

fig, axes = plt.subplots(1, 3, figsize=(12, 3), sharey=True)

vmin = min(y_grid_true.min(), mean_pred_lin_grid.min(), mean_pred_joint_grid.min())
vmax = max(y_grid_true.max(), mean_pred_lin_grid.max(), mean_pred_joint_grid.max())
levels = jnp.linspace(vmin, vmax, 20)

c0 = axes[0].tricontourf(
    X_grid[:, 0], X_grid[:, 1], y_grid_true, levels=levels, cmap="magma"
)
axes[0].set_title("True Signal")

c1 = axes[1].tricontourf(
    X_grid[:, 0],
    X_grid[:, 1],
    mean_pred_lin_grid.flatten(),
    levels=levels,
    cmap="magma",
)
axes[1].set_title(f"Linear Model (RMSE: {rmse_lin:.2f})")

c2 = axes[2].tricontourf(
    X_grid[:, 0],
    X_grid[:, 1],
    mean_pred_joint_grid.flatten(),
    levels=levels,
    cmap="magma",
)
axes[2].set_title(f"Joint Model (RMSE: {rmse_joint:.2f})")

cbar = fig.colorbar(c0, ax=axes.tolist())
cbar.ax.yaxis.set_major_formatter(mpl.ticker.FormatStrFormatter("%d"))

for ax in axes:
    ax.set_xlabel("x1")
    ax.scatter(X[:, 0], X[:, 1], c=cols[0], s=10, alpha=0.5)

png

System configuration

%load_ext watermark
%watermark -n -u -v -iv -w -a "Thomas Pinder"

Author: Thomas Pinder

Last updated: Tue, 21 Apr 2026

Python implementation: CPython
Python version       : 3.11.15
IPython version      : 9.9.0

gpjax     : 0.14.0
jax       : 0.9.0
matplotlib: 3.10.8
numpyro   : 0.19.0

Watermark: 2.6.0
